KwasTools (Hedgehog Engine)
Author(s) | Kwasior |
Website |
KwasTools is a set of utilities for several games. Notably it contains tools to view and edit Hedgehog Engine *-anim
family of formats and CRIWARE formats. A Blender addon called io_kwastools also exists for real-time preview and editing .cam-anim
and .uv-anim
files.
Entire suite of tools supports Windows and GNU/Linux operating systems.
Software

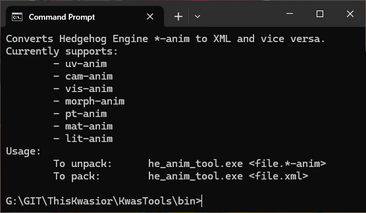

he_anim_tool

he_anim_tool
he_anim_tool
is a tool for modifying animation files native to the Hedgehog Engine 1 and 2.
Any given *-anim
will be converted to its XML representation. Same goes for XML files - tool will know the output format thanks to root element's name (XML identifier).
Format | Description | XML identifier |
---|---|---|
.uv-anim
|
Translation (v2), rotation and scaling (v3) of a texture in the material | UVAnimation
|
.cam-anim
|
Full control of in-game camera during events | CAMAnimation
|
.vis-anim
|
Visibility of the mesh | VISAnimation
|
.morph-anim
|
Animation of shape keys (Sonic's mouth in Unleashed/Generations uses this to speak) | MORPHAnimation
|
.pt-anim
|
Texture swapping (Tokyo DLC in Shadow Generations uses this for the billboard) | PTAnimation
|
.mat-anim
|
Transformation of a material (like swapping Sonic's mouth left-to-right) | MATAnimation
|
.lit-anim
|
Companion to .light files. Can animate its fields.
|
LITAnimation
|
cri_awb_tool
Unpacker and packer for AWB audio archives. Does not support decrypting data (will extract contents as-is).
Extracts an AWB to a folder and writes an XML file with its metadata.
Creates an AWB from a folder of files (with default values) or from an XML descriptor.
cri_utf_tool

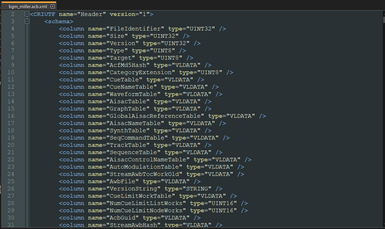

bgm_miller.acb
converted to XMLMulti-purpose tool for editing CRIWARE @UTF
tables. Created for modification of .acb
files, but will work fine with tables from other formats, such as .acf
, .cpk
, .aax
, .usm
or .csb
.
In addition to @UTF
, program will also parse ACB commands (used for example for looping of Sonic Frontiers' Titan songs) and embedded AWB files (which allows for modding music and sounds without shipping entire corresponding AWB file).
